Protect capital equipment
Keep CNC, packaging lines, HVAC, and lab gear within a safe operating window.
Govind Engineering
Servo voltage stabilizers for loads that cannot trip
Motor-driven regulation built in our Chinhat workshop — sized after survey for single-phase and three-phase industrial duty across Uttar Pradesh.
Stable output when the line will not stay still
A servo stabilizer senses input voltage changes and drives a Buck-Boost transformer through an AC synchronous motor — with control card, dimmer, and comparator logic — so output stays within a tight band for sensitive and industrial loads.
- Oil-cooled builds up to high industrial kVA
- Air-cooled options for lighter and compact duty
- IP55-compliant enclosures for harsh electrical rooms
- Relay-based AVR variants where the application fits
Why sites need a servo stabilizer
Voltage swings shorten motor life, trip CNC and medical equipment, and interrupt production shifts.
Cut nuisance downtime
Reduce trips and restarts caused by sag, swell, and unbalanced feeders.
Match phase and capacity
Single-phase 1–20 kVA for lighter loads; three-phase industrial capacity for plant boards.
Cool for the room
Oil-cooled or air-cooled builds selected for ambient, continuous load, and enclosure rating.
Salient features
Solid-state control with tight regulation and optional protection packages.
- Fully solid-state control circuit
- ±1.0% regulation from no load to full load
- No waveform distortion
- High efficiency under continuous duty
- Auto / manual operation
- Over / under voltage protection (optional)
- Built-in spike suppressor (optional)
- Special input / output ranges (optional)
- Air-cooled and oil-cooled constructions
- IP55-compliant enclosure options
Technical specifications
Standard ranges we quote against; custom windows are available after site survey.
Single phase
1–20 kVA
Three phase
Industrial capacity
Regulation
±1.0%
Cooling
Oil & air cooled
Enclosure
IP55 options
Correction
20 V/sec
| Single-phase voltage range | 170–270 V, 140–280 V, 110–280 V |
|---|---|
| Three-phase voltage range | 340–480 V, 300–450 V, 260–480 V, 240–460 V |
| Frequency | Same as input frequency |
| Waveform distortion | None |
| Speed of correction | 20 V/sec |
| Regulation | ±1.0% from no load to full load |
| Ambient temperature | 0 to 55 °C |
| Custom ranges | Customised voltage windows available on request |

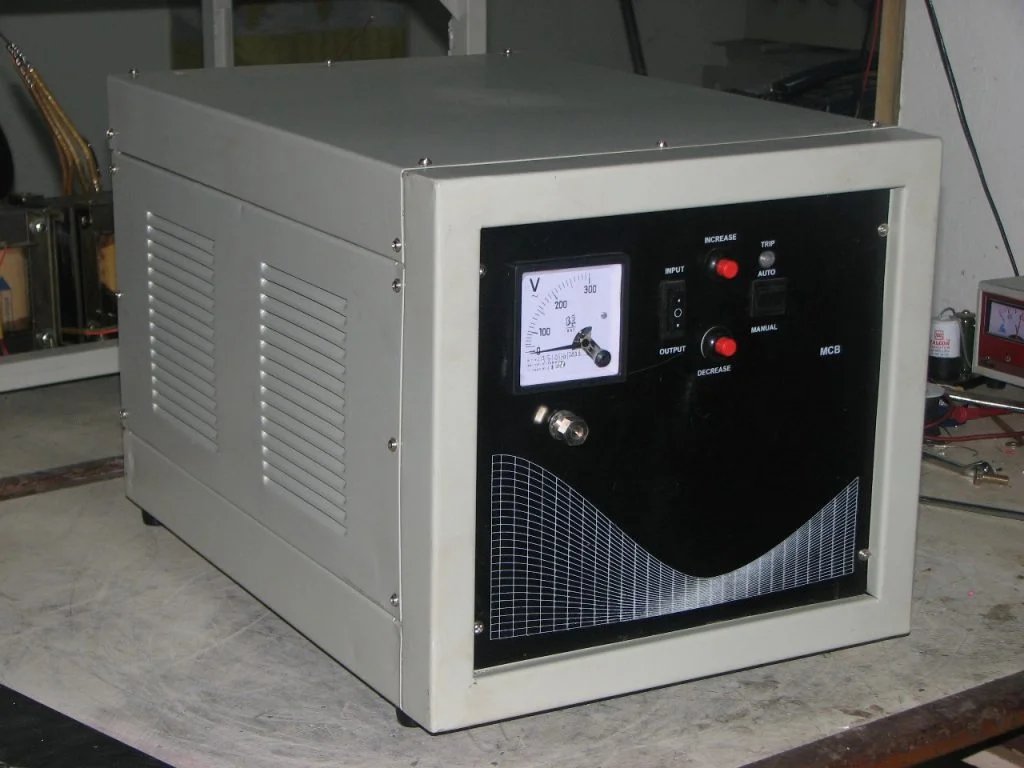

Product gallery
Workshop builds and field-ready enclosures from our servo line.
Typical applications
Where regulated supply protects uptime and equipment life.
-
CNC & machine tools
Stable feed for spindles, drives, and control cabinets.
-
Printing & packaging
Fewer stoppages when feeder voltage wanders through the shift.
-
Hospitals & labs
Protection for imaging, diagnostics, and clean-room support loads.
-
Commercial HVAC
Better compressor and VFD behaviour on soft utility lines.
-
IT & data rooms
Cleaner input ahead of UPS and server infrastructure.
-
Industrial process lines
Three-phase regulation for continuous production boards.
Need a stabilizer sized to your load?
Share phase, approximate kVA, and site location — we will recommend a configuration and quotation.
